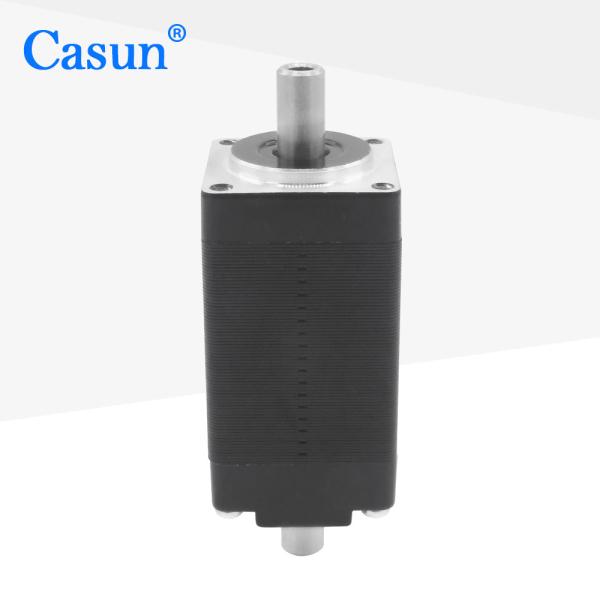

0.6A 5.4V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine

Name: 06A 54V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine
Brand: Casun
Price: 6.86 USD

China 0.6A 5.4V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine wholesale

Brand Name : Casun

Model Number : 20SHD0250-10SK

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1PC

Price : $6.86-$10.5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Steper angle : 1.8degree

Phase : 2

Rated voltage : 5.4V

Rate current : 0.6A

Holding torque : 32mN.m

Detent torque : 2mN.m

Customized : The motor can be designed &manufactured with customized request.

Contact Now

28x28x38mm 0.6A Motor paso a paso 5.4V Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine

The 20mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	32 mN.m
Resistance	9.0 Om
Inductance	3.2mH
Rotor Inertia	3.8 g-cm²
Motor weight	0.1 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Casun Model	General Model	Angle	Motor Length	Rated Current	Holding Torque
B20SHD4353-10	8HS11-0204S	1.8°	28mm	0.2A	0.016 N.m
	8HS12-0506S	1.8°	28mm	0.5A	0.018N.m
20SHD0501-10	8HS13-0604S	1.8°	34.3mm	0.6A	0.018N.m
	8HS15-0304S	1.8°	38mm	0.3A	0.03N.m
20SHD4255-10X	8HS15-0604S	1.8°	38mm	0.6A	0.04N.m
20SHD4101-20		1.8°	42mm	0.8A	0.03N.m

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
