1.0A Micro Stepping Motor 1.8 Degree Hybrid NEMA 14 35mm Body

Name: 10A Micro Stepping Motor 18 Degree Hybrid NEMA 14 35mm Body
Brand: Casun
Price: 4.14 USD

China 1.0A Micro Stepping Motor 1.8 Degree Hybrid NEMA 14 35mm Body wholesale

Brand Name : Casun

Model Number : 35SHD0806-20BV2

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 140mN.m

Current : 1.0A

Motor Length : 40mm

Shaft : Milling Flat Shaft 20mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

High Quality 1.8 Degree Hybrid NEMA 14 35mm Body Micro Stepping Motor Arduino

Due to their low vibration and noise levels, they are often used in medical equipment.

The motion of the NEMA14 stepper motor is predictable and repeatable.

Features:

Bipolar or unipolar versions available
Our engineers will respond within 48 hours to provide the best solution
Available in single or double shaft versions
To give the best solution, our engineers will contact you within 48 hours
Contract manufacturing accepted

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	140 mN.m
Resistance	2.5 ohm
Inductance	1.9 mH
Rotor Inertia	18 g-cm²
Motor weight	0.21 kg
Number of leads	4
Connection	Bipolar

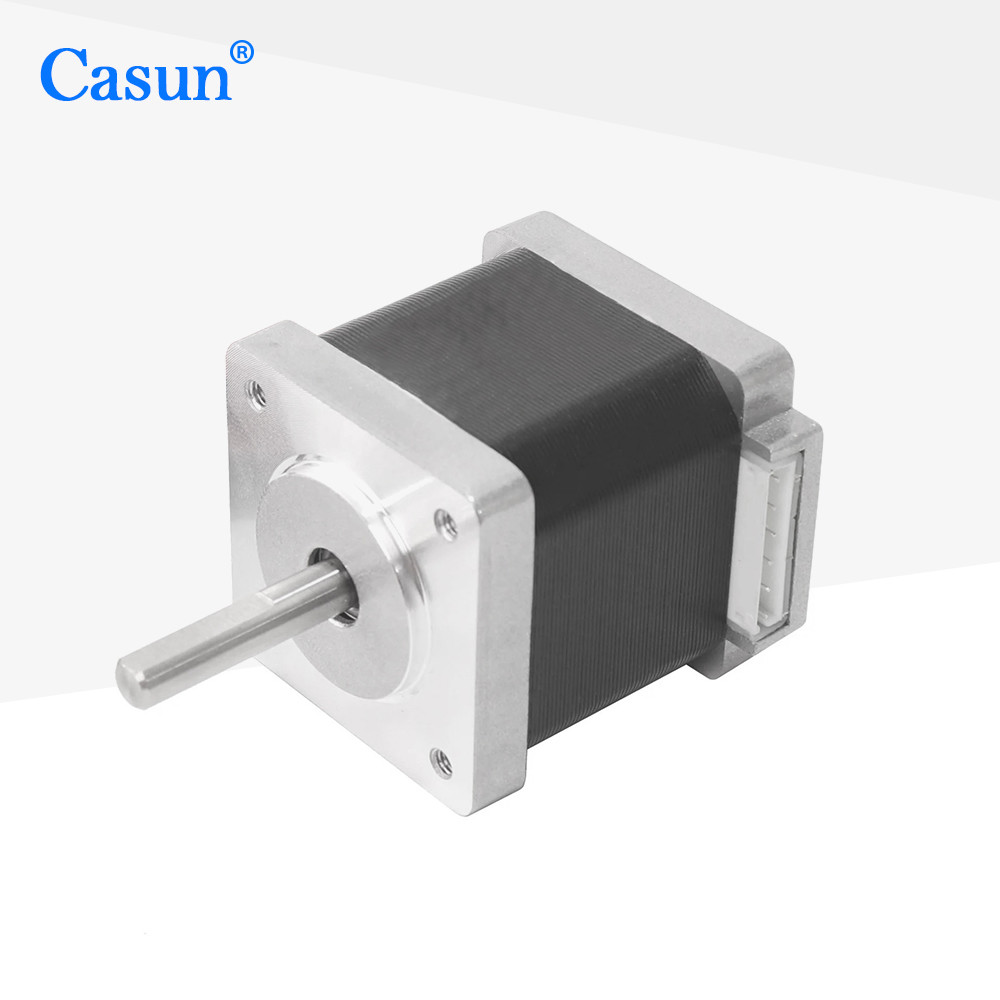

Appearance

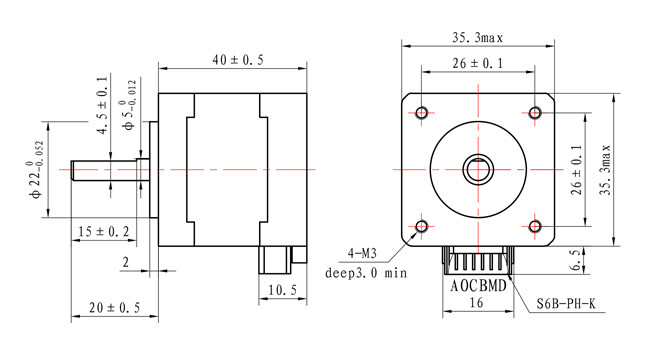

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
