57x57x100mm NEMA 23 Stepper Motor Dual Shaft 4.2A For Automation Systems

Name: 57x57x100mm NEMA 23 Stepper Motor Dual Shaft 42A For Automation Systems
Brand: Casun
Price: 3.14 USD

China 57x57x100mm NEMA 23 Stepper Motor Dual Shaft 4.2A For Automation Systems wholesale

Brand Name : Casun

Model Number : 57SHD4936-21BS

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 2.6N.m

Current : 4.2A

Motor Length : 100mm

Shaft : Dual Shaft 21mm&15mm Length

Shaft Diameter : 8mm

Customized : The motor can be designed &manufactured with customized request.

Contact Now

57x57x100mm NEMA 23 Stepper Motor Dual Shaft 4.2A As Automation Systems

The structure is relatively simple, without vulnerable components such as brushes and collector rings, resulting in a longer lifespan.

Very suitable for fields that require diversified motion control such as automation systems and robot control.

Features:

High torque and high precision
Tailored service options
We possess expertise in drivetrain solutions
Having operated in China for 12 years, we have catered to over 800 customers
Your purchase includes a ten-year warranty, ensuring confidence

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	4.2 A
Holding Torque	2.6 N.m
Resistance	0.64 ohm
Inductance	2.25 mH
Rotor Inertia	650 g-cm²
Motor weight1	1.3 kg
Number of leads	4
Connection	Bipolar

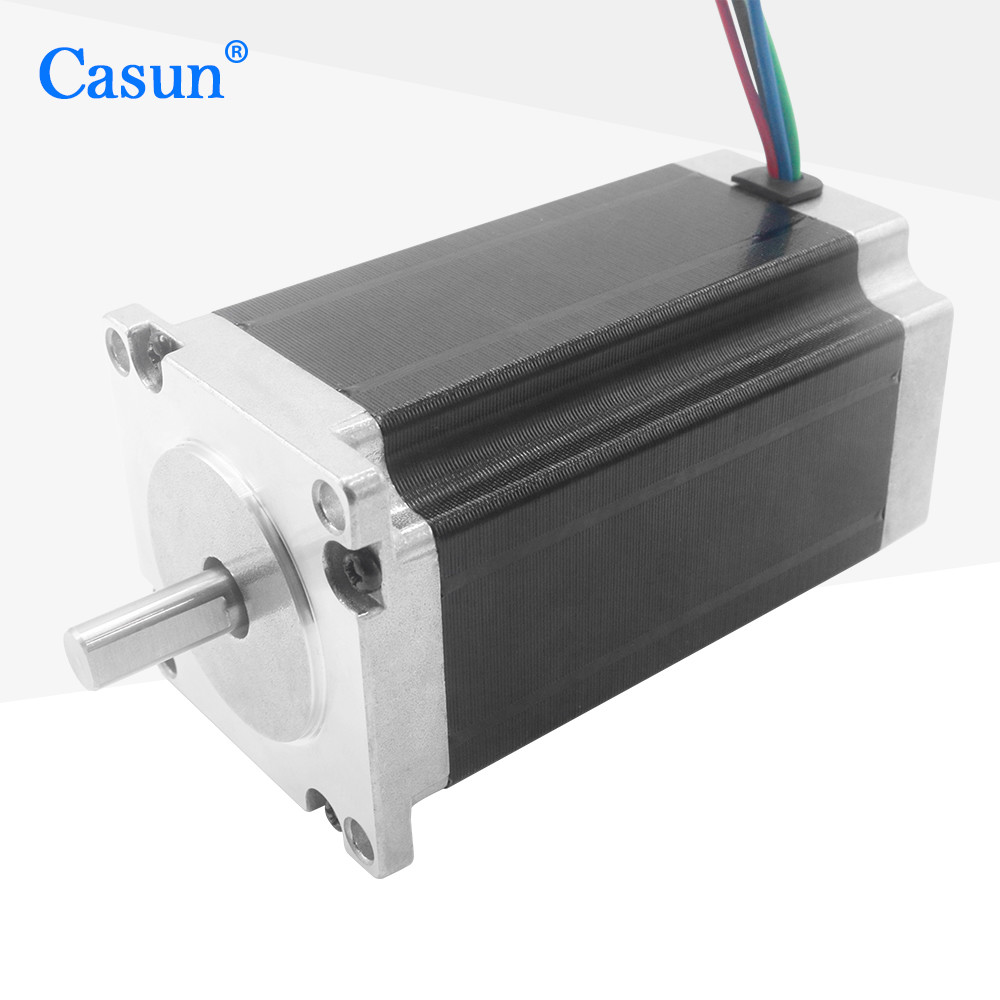

Appearance

57x57x100mm NEMA 23 Stepper Motor Dual Shaft 4.2A For Automation Systems

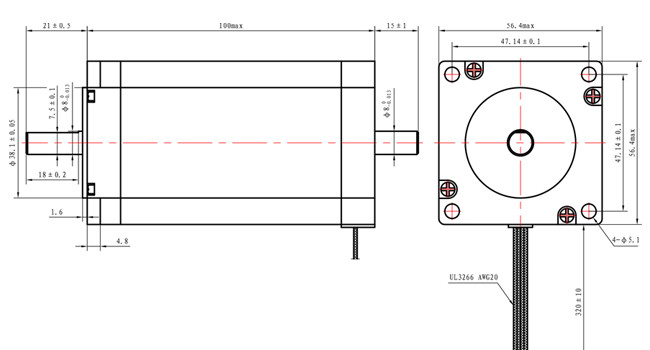

Dimensions

57x57x100mm NEMA 23 Stepper Motor Dual Shaft 4.2A For Automation Systems

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
