1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

Name: 18 Degree NEMA 14 SMT Stepper Motor 66V 90mNm Gear Shaft Permanent Magnet Motor
Brand: Casun
Price: 4.14 USD

China 1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor wholesale

Brand Name : Casun

Model Number : 36SHD4302-7AH

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 90mN.m

Current : 0.3A

Motor Length : 15.4mm

Shaft : Gear Shaft 7mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Stepper motors can respond very quickly to commands, making them very useful in applications that require quick start and stop.

Provide different configuration options, such as different step angles, lengths, and torque levels.

Features:

Established in China for 12 years, we have served more than 800 customers
Expert in drivetrain solutions
Delivering high torque and accuracy
Backed by a 10-year warranty for your confident purchase
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	90 mN.m
Resistance	23 ohm
Inductance	10 mH
Rotor Inertia	4 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

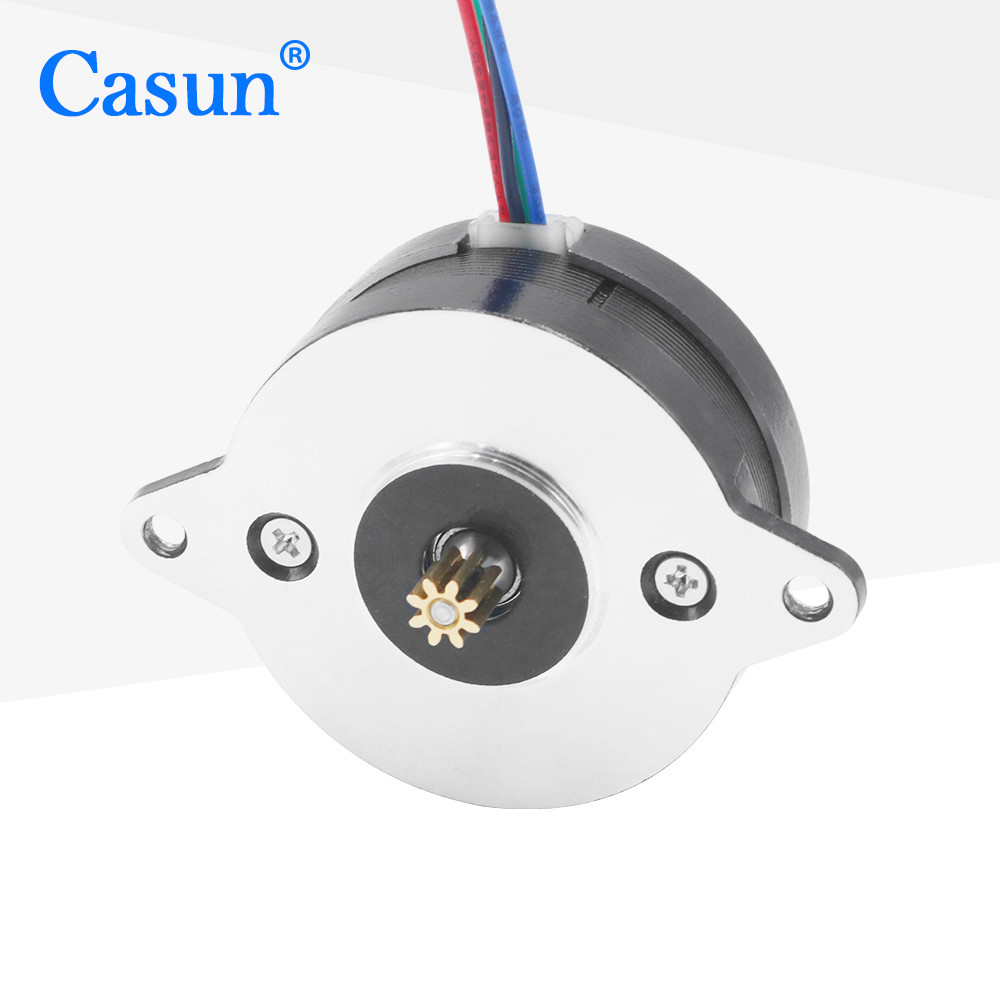

Appearance

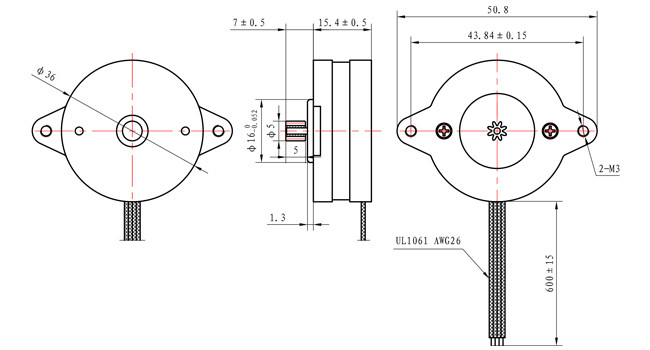

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters,

installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
