Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment

Name: Customizable NEMA 17 Stepping Motor 168A 036Nm for Packaging Equipment
Brand: Casun
Price: 3.14 USD

China Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment wholesale

Brand Name : Casun

Model Number : 42SHD0248-27S

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 360mN.m

Current : 1.68A

Motor Length : 40mm

Shaft : Dual Shaft 27mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Dual axis stepper motors can be customized according to specific application requirements.

It has two output axes, each of which can be independently controlled.

Features:

Our products deliver high torque and precision
For high-tech industry and electronic industry equipment
Offering high torque and precision
Our manufacturing process is backed by professional research and development
Ten-year warranty and purchase with confidence

Appearance

Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment

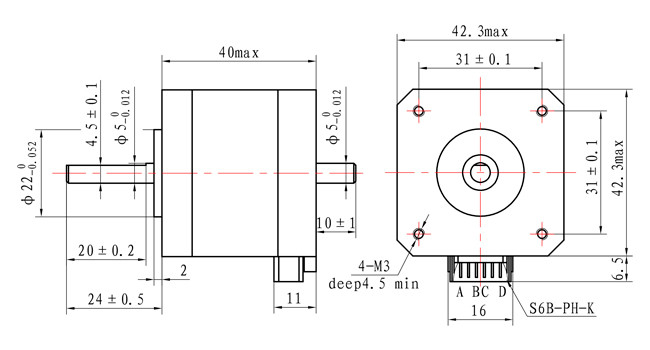

Dimensions

Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	360 mN.m
Resistance	1.65 ohm
Inductance	3.2 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
