NEMA 17 Dual Axis Stepper Motor 42×42×48mm 1.68A With Packaging Equipment

Name: NEMA 17 Dual Axis Stepper Motor 424248mm 168A With Packaging Equipment
Brand: Casun
Price: 3.14 USD

China NEMA 17 Dual Axis Stepper Motor 42×42×48mm 1.68A With Packaging Equipment wholesale

Brand Name : Casun

Model Number : 42SHD4438-24SH

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 440mN.m

Current : 1.68A

Motor Length : 48mm

Shaft : Dual Shaft 24mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The dual axis motor occupies less space, which is beneficial for the miniaturization and lightweight design of the equipment.

Widely used in industrial automation, mechanical equipment and other fields.

Features:

Expertise in professional research and development manufacturing
For high-tech industry and electronic industry equipment
Offering high torque and precision
Our engineers will be in touch within 48 hours to provide the best solution
Offers a 10-year warranty and buy with confidence

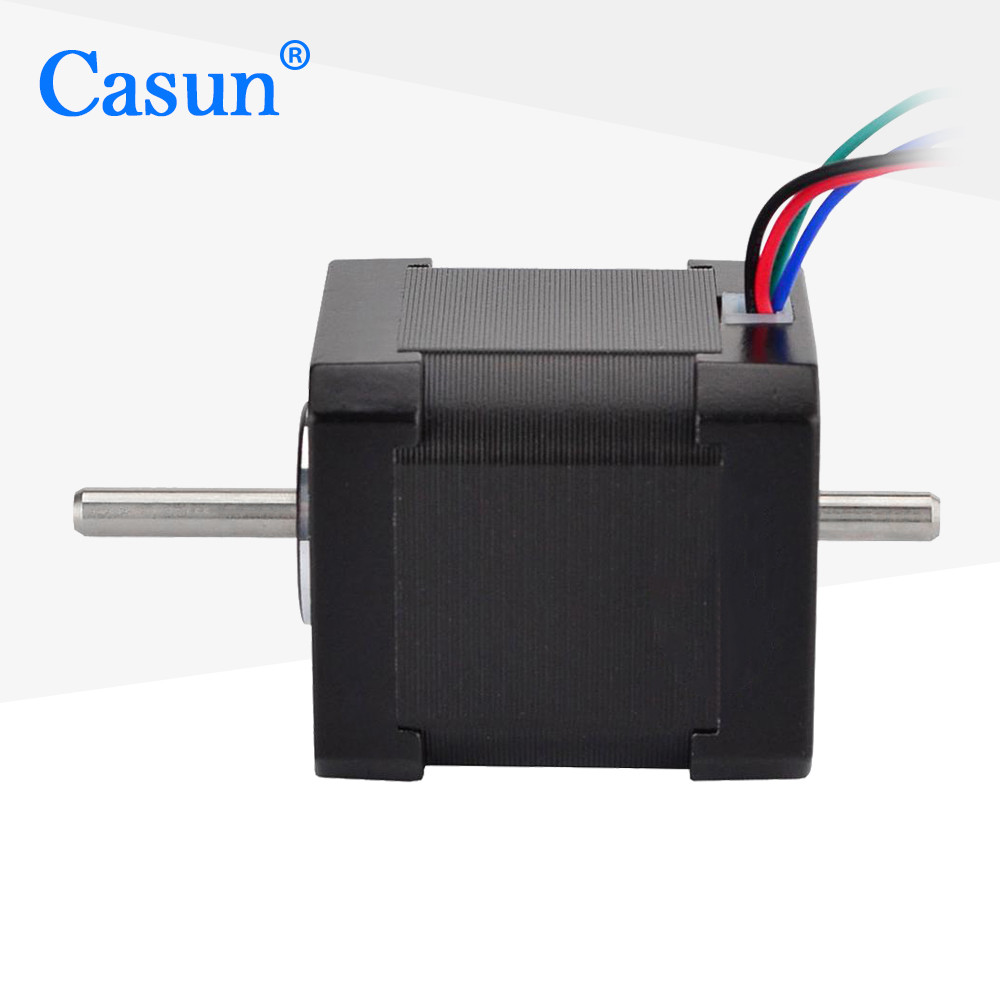

Appearance

NEMA 17 Dual Axis Stepper Motor 42×42×48mm 1.68A With Packaging Equipment

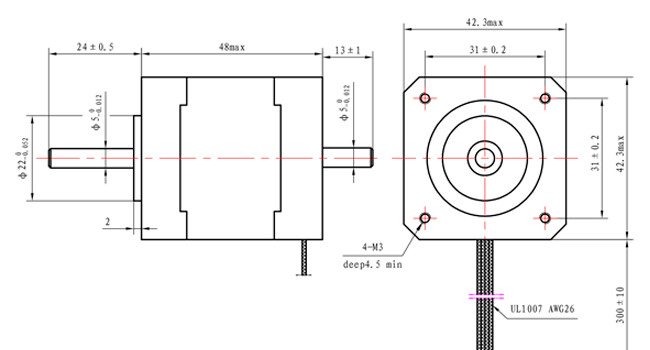

Dimensions

NEMA 17 Dual Axis Stepper Motor 42×42×48mm 1.68A With Packaging Equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	440 mN.m
Resistance	1.65 ohm
Inductance	2.8 mH
Rotor Inertia	72 g-cm²
Motor weight	0.38 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
