Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment

Name: Nema 17 18 Degree 125mNm 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment
Brand: Casun
Price: 5 USD

China Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment wholesale

Brand Name : Casun

Model Number : 42SHD8909-24

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 5PC

Price : $5~$7

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 10000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29x18cm

Holding Torque : 125 mN.m

Voltage : 2.26V

Current : 1.2A

Body Length : 23mm

Weight : 0.2 kg

Phase Resistance : 1.88 ohm ±10% （At 20℃）

Shaft Length : 24 mm

Phase : 2

Insulation Class : Class B

Contact Now

Casun Nema 17 1.8° Degree 125mN.m 23mm Body with CE RoHS Certification Stepper Motor for Beauty Equipment

The Casun Nema17 Hybrid Stepper Motor delivers industrial-grade precision and high-torque performance (500mN.m) for demanding CNC and automation applications. Featuring a compact 42×48mm frame, this motor integrates advanced hybrid technology for smooth, reliable motion control while maintaining exceptional energy efficiency.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

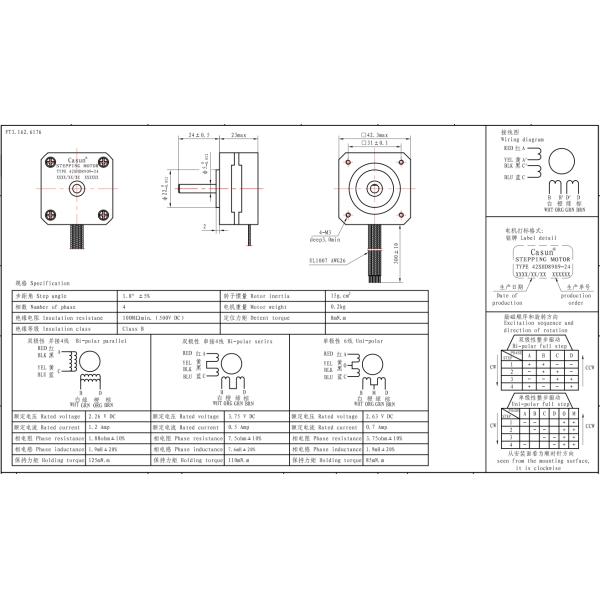

Dimensions

Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment

Motor Specifications

Step Angel	1.8°
Frame Size	23 mm
Number of Phase	2 Phase
Rated Current	1.2 Amp
Holding Torque	125 mN.m
Resistance	1.88 ohm
Inductance	1.9 mH
Rotor Inertia	15 g.cm²
Motor weight	0.2 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment

Please click the "Get a quote" button below to tell us your requirements.
